Forensic Workstation
& Servers
Purpose-built compute and evidence-storage platforms for digital forensic laboratories and law enforcement — many-core CPUs, ECC memory, integrated write-blocker bridges, hot-swap evidence bays and RAID-protected bulk storage. Pick a tier, or have us build to your exact requirement.

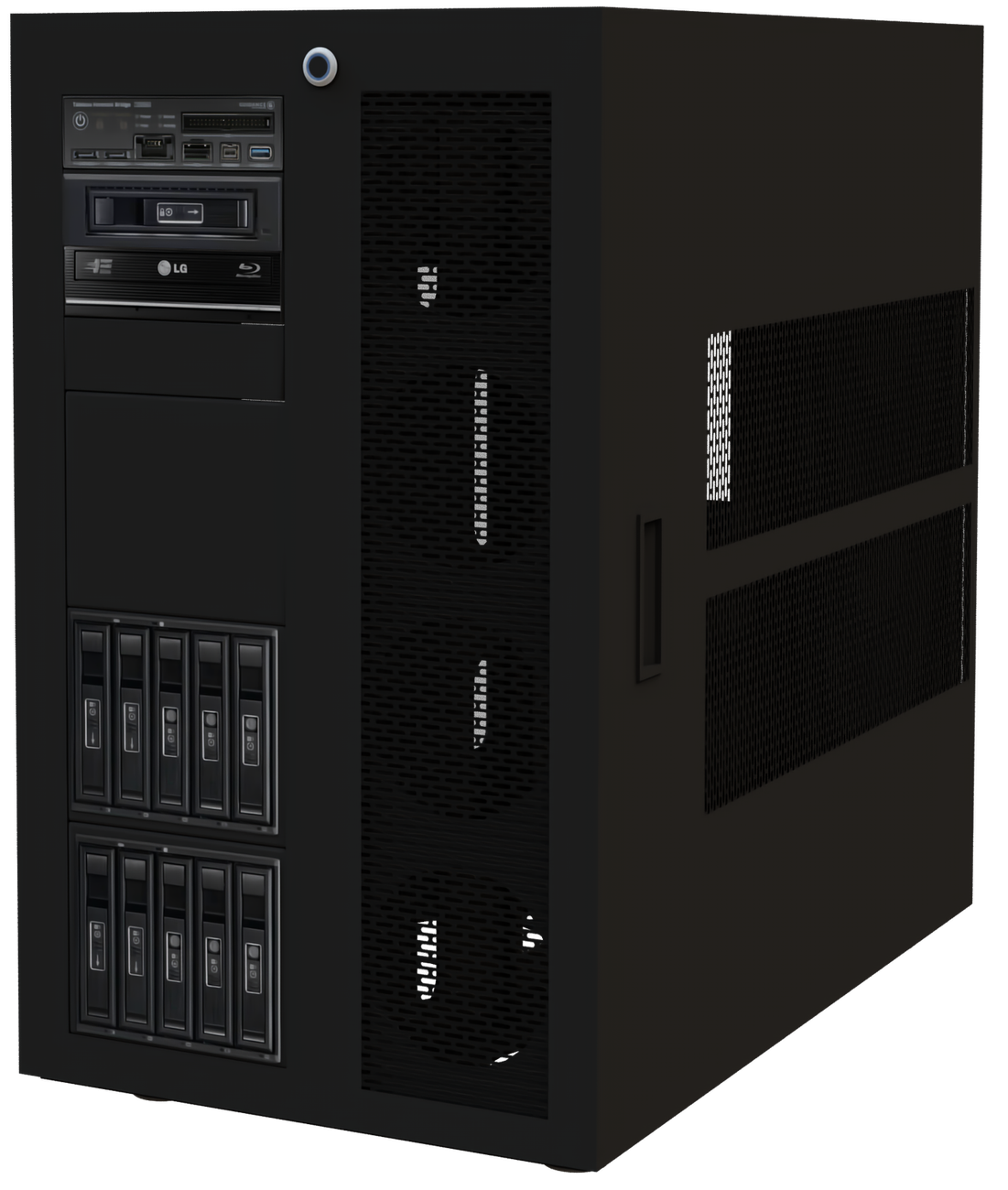

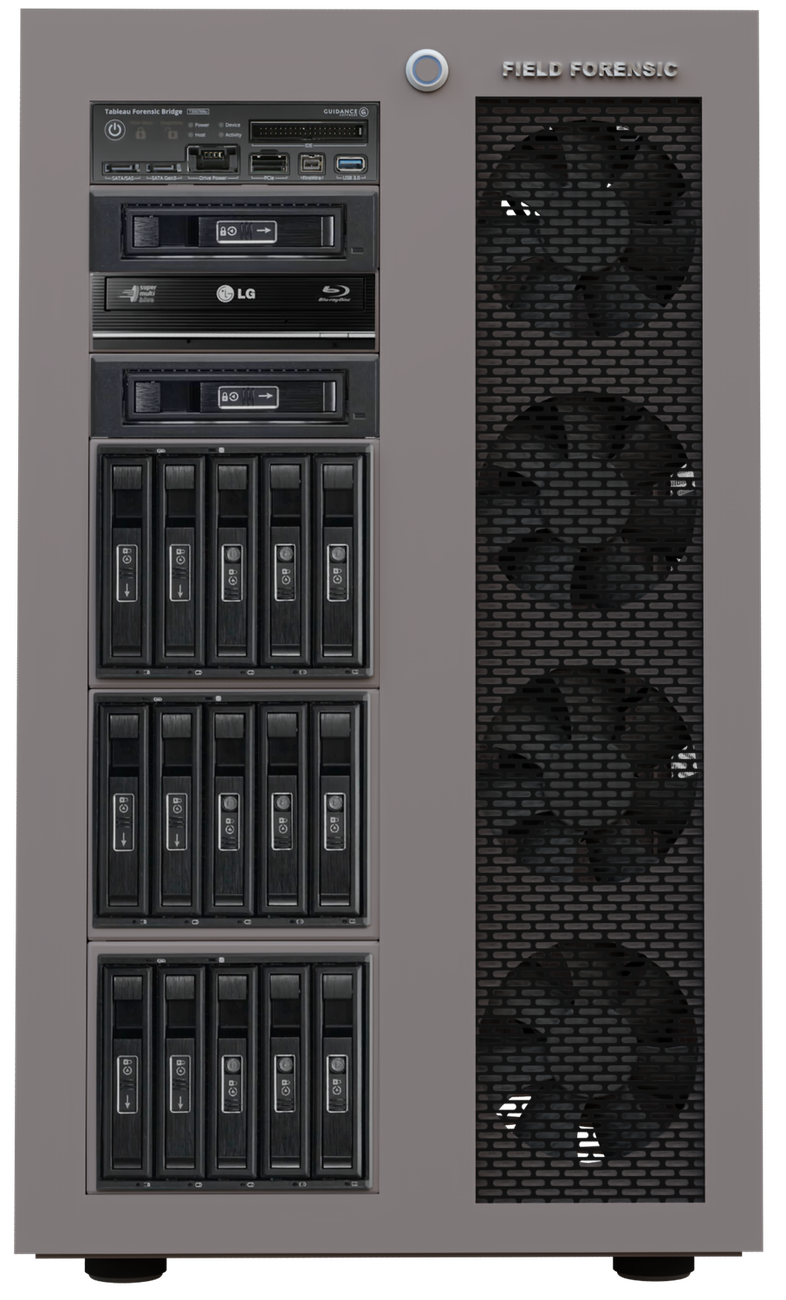

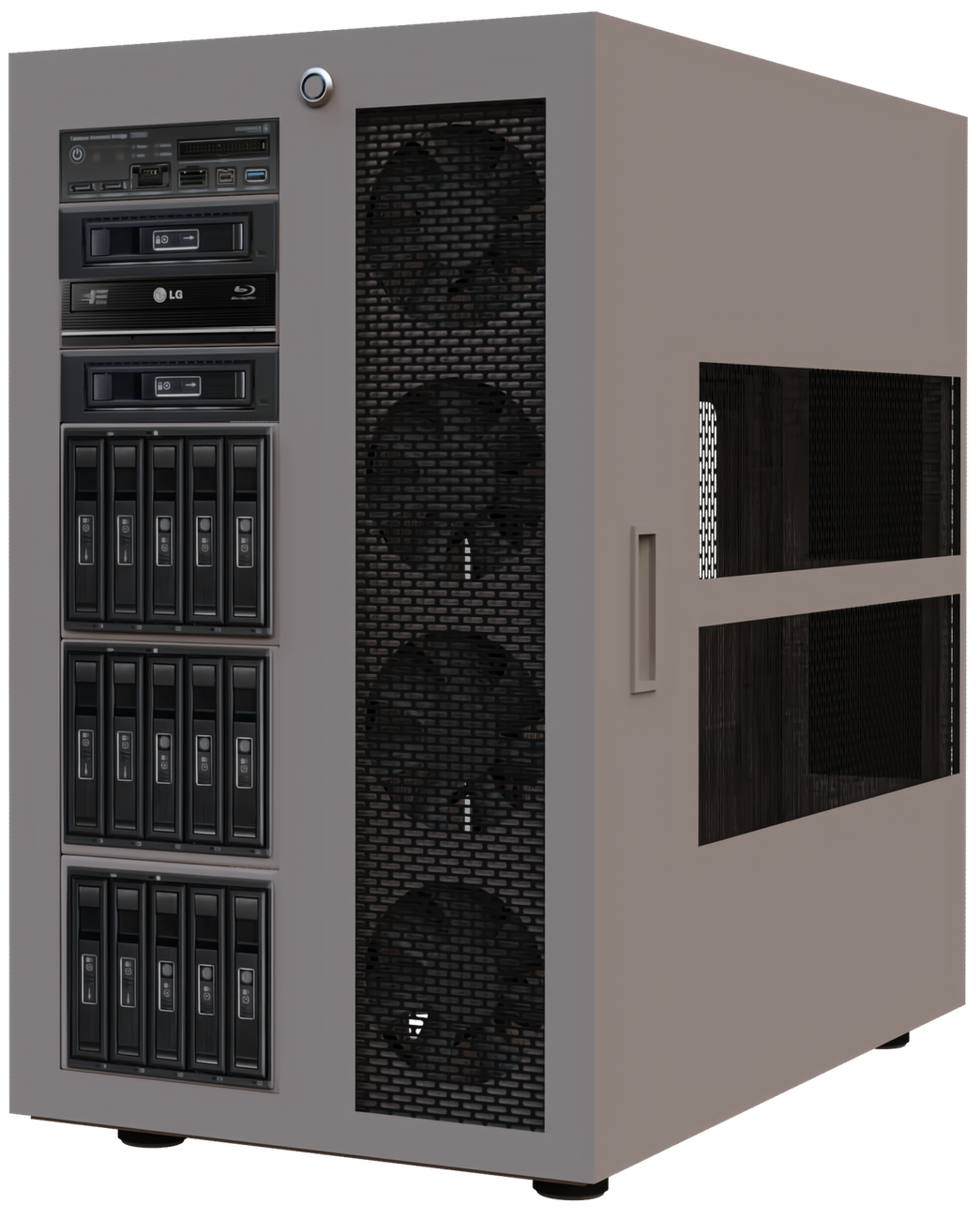

The examiner's tower
A single-seat forensic workstation engineered for defensible acquisition and heavy analysis — integrated write-blocker bridge, fifteen front hot-swap bays, RAID-protected evidence storage and the compute headroom for imaging, indexing and AI-assisted enhancement.

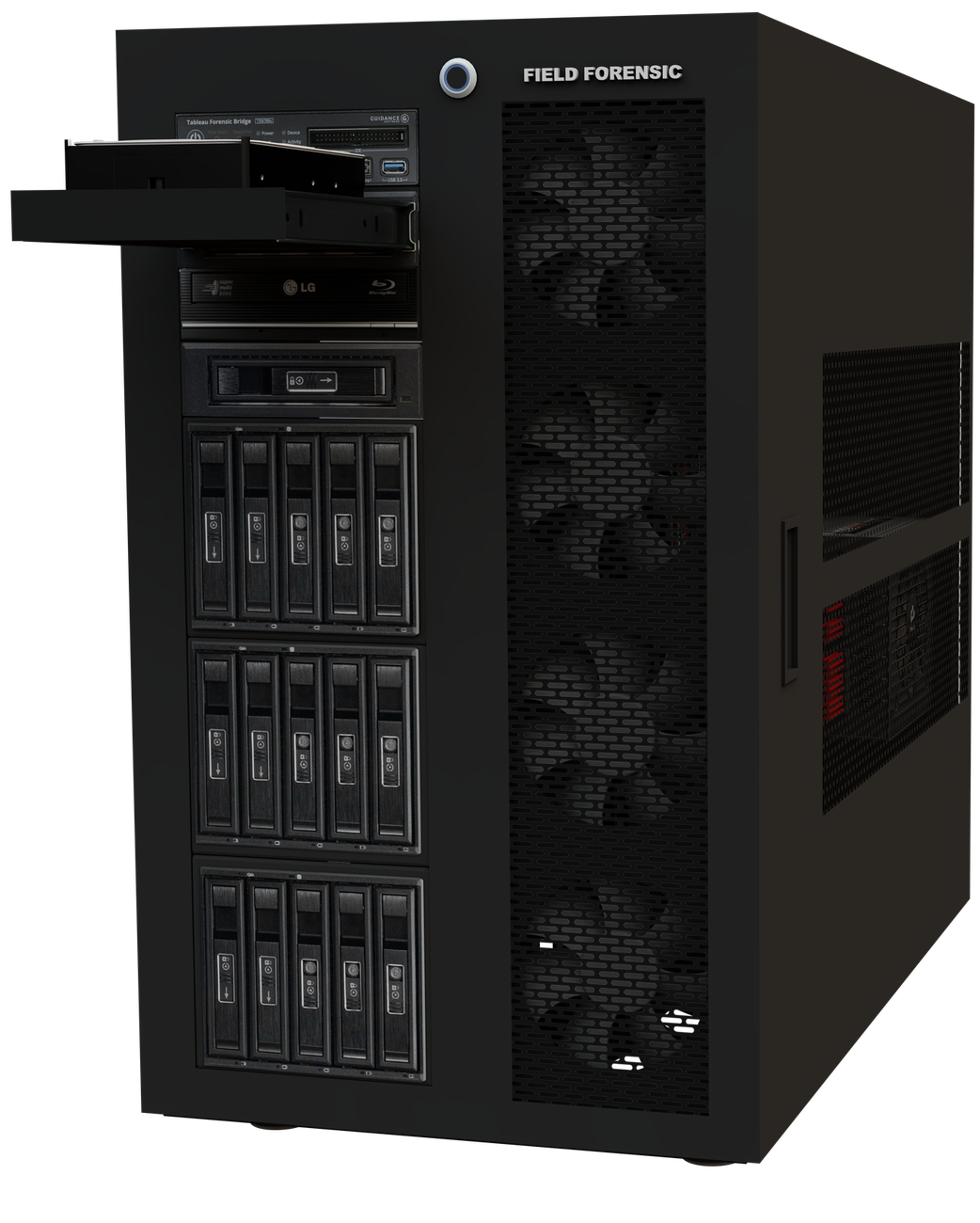

Integrated forensic write-blocker bridge
Many-core compute
Threadripper PRO-class CPUs for parallel imaging, indexing & transcoding.
Write-blocker bridge
Built-in SATA · SAS · USB · NVMe bridges for defensible acquisition.
15 hot-swap bays
Tool-less front bays for evidence drives and fast RAID expansion.
ECC memory
Up to 256 GB DDR5 ECC for stability on long-running jobs.
Workstation tiers
Scaled by caseload — from a standard examiner seat to a high-throughput build. Every row can be tailored on request.
| Item | Tier 1 Examiner |
Tier 2 Advanced |
Tier 3 Flagship High-Throughput |
|---|---|---|---|
| Processor | Intel Core Ultra 9 285K | AMD Threadripper PRO 7965WX · 24-core | AMD Threadripper PRO 7975WX · 32-core |
| Memory | 64 GB DDR5 | 128 GB DDR5 ECC | 256 GB DDR5 ECC |
| OS Drive | 1 TB NVMe Gen4 | 2 TB NVMe Gen4 | 2 TB NVMe Gen4 |
| Work / Cache | 2 × 2 TB NVMe · RAID 0 | 2 × 4 TB NVMe · RAID 0 | 4 × 4 TB NVMe · RAID 10 |
| Evidence Storage | 4 × 20 TB HDD · ~60 TB RAID 5 | 8 × 20 TB HDD · ~140 TB RAID 6 | 12 × 22 TB HDD · ~220 TB RAID 6 |
| Hot-swap Bays | 5 front bays | 10 front bays | 15 front bays |
| Write-Blocker Bridge | SATA · USB | SATA · SAS · USB · NVMe | SATA · SAS · USB · NVMe + spares |
| GPU | NVIDIA RTX A1000 | NVIDIA RTX 4500 Ada | NVIDIA RTX 5000 Ada |
| Optical | Blu-ray writer | Blu-ray writer | Blu-ray writer + DVD |
| Display | 27-inch 4K | 32-inch 4K | 2 × 32-inch 4K |
| PSU | 850 W 80+ Gold | 1300 W 80+ Platinum | 1600 W 80+ Platinum |
| Operating System | Windows 11 Pro 64-bit | Windows 11 Pro / Linux | Windows 11 Pro / Linux |
Specifications are indicative and may be tailored to your caseload, storage and chain-of-custody requirements.
Centralized evidence & compute
When a lab outgrows single seats, a forensic server consolidates evidence onto resilient, access-controlled storage and shares heavy processing across examiners — ECC throughout, hardware RAID, high-speed networking and a clear audit trail.
Petabyte-scale RAID
Dual-parity RAID 6 / 60 arrays scaling past 500 TB raw for case archives.
10–100 GbE fabric
High-speed networking so examiners work evidence over the wire at line rate.
Access & audit control
Role-based access, logging and integrity checks for chain-of-custody.
Redundant & hot-swap
Redundant PSUs, hot-swap drives and fans for continuous uptime.

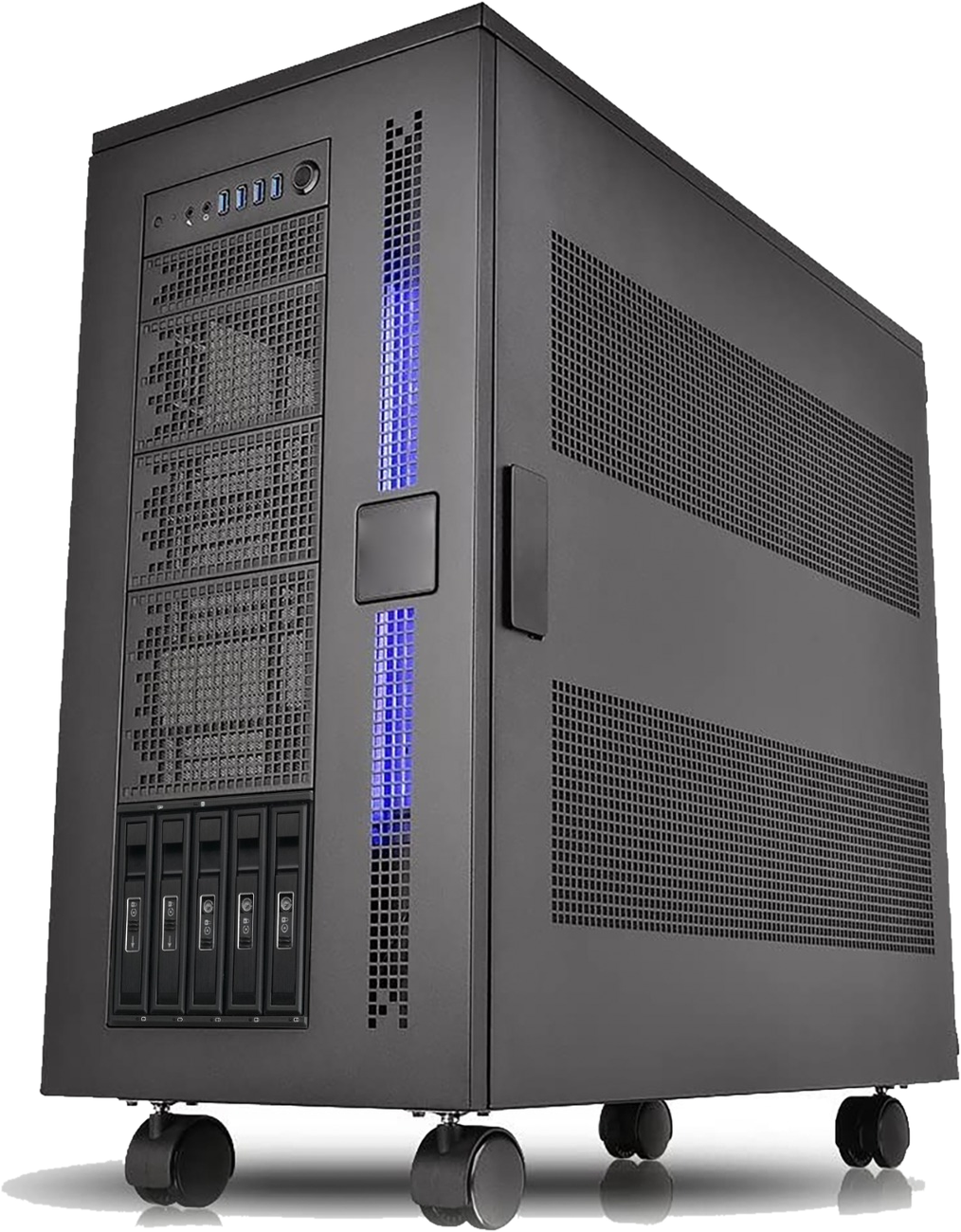

Pedestal evidence server · rack-ready
Server tiers
From a workgroup evidence store to an enterprise storage platform. Capacity, networking and redundancy tailored to your facility.
| Item | Tier 1 Workgroup |
Tier 2 Department |
Tier 3 Enterprise Enterprise |
|---|---|---|---|
| Form Factor | Pedestal tower | Pedestal tower | Tower / 4U rack-ready |
| Processor | Intel Xeon Silver / EPYC · 8-core | Dual Xeon Gold / EPYC · 32-core | Dual EPYC · 64-core |
| Memory | 128 GB DDR5 ECC RDIMM | 256 GB DDR5 ECC RDIMM | 512 GB+ DDR5 ECC RDIMM |
| Boot / OS | 2 × 480 GB SSD · RAID 1 | 2 × 960 GB SSD · RAID 1 | 2 × 1.92 TB NVMe · RAID 1 |
| Cache Tier | 2 × 2 TB NVMe | 4 × 4 TB NVMe | 8 × 4 TB NVMe |
| Bulk Storage | 8 bays · ~120 TB RAID 6 | 16 bays · ~280 TB RAID 6 | 24+ bays · ~500 TB RAID 6 / 60 |
| RAID Controller | Hardware RAID + BBU | Hardware RAID + cache / BBU | Hardware RAID + cache / BBU |
| Networking | 2 × 10 GbE | 2 × 25 GbE | 2 × 25 / 100 GbE |
| Power | Single PSU | Redundant PSU | Redundant PSU + hot-swap fans |
| Backup | External target | LTO-9 drive option | LTO-9 autoloader option |
| Management | IPMI remote | IPMI remote | IPMI remote + ECC monitoring |
| Operating System | Windows Server / Linux | Windows Server / Linux | Windows Server / Linux |
Capacities shown are raw and indicative; usable capacity depends on RAID level. Configurations are tailored to evidence volume, retention and access-control policy.
Built to your requirement
The tiers are starting points. Every workstation and server is configured around your caseload, software and chain-of-custody needs — tell us what you need and we'll engineer it.
Storage capacity
Scale RAID arrays, add NAS / SAN tiers or hot-swap bays for your evidence volumes.
Compute & GPU
Add GPUs for AI video enhancement, face / plate analysis and faster transcoding.
Software stack
Pre-loaded with DRISHTI CCTV Suite, Evidence Collector and your preferred tools.
Form factor
Tower, rack-mount for the server room, or vehicle-mounted for an MFV.
Write-blockers & peripherals
Specific forensic bridges, card readers, optical and legacy interfaces on request.
Support, warranty & training
On-site setup, operator training and warranty options tailored to your agency.
Don't see your exact spec?
We design and build forensic workstations and servers to your precise requirement — processor, memory, storage, GPUs, software and form factor.
Forensic Tablet
A rugged handheld tablet for first-look triage, evidence photography and on-scene notes when a full workstation isn't practical.
Coming Soon
Full specifications and availability details for the Forensic Tablet will be published shortly.
Incident Response Kit
A ready-to-deploy rugged kit for first responders — secure evidence collection and imaging tools in one case, built for rapid on-scene deployment.
Coming Soon
Full specifications and availability details for the Incident Response Kit will be published shortly.
Configure your lab infrastructure
Tell us your caseload, storage and software needs and we'll recommend the right workstation and server tiers — or build a custom configuration for your facility.
